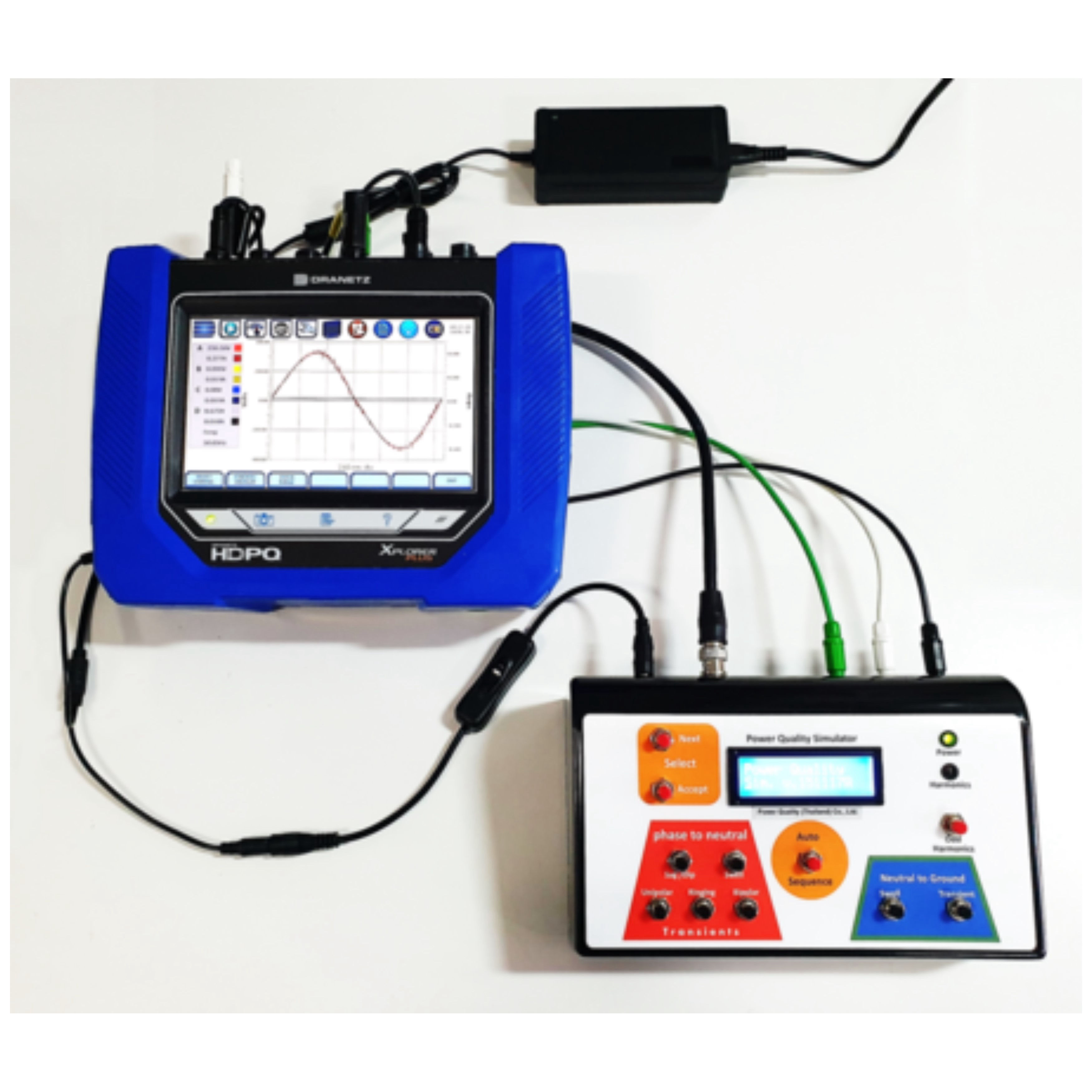

PQSim 100 & 200™

A Power Practitioner™ Training Tool

PQSim was designed by power quality experts with +30 years' experience in testing and documenting power quality. The PQSim provides the user with the capability to select PQ event and its magnitude to test PQ instrument setups, capture capability with a repeatable and predictable voltage and current waveforms.

bootstrap html templates
Mobirise

Features

• User selectable PQ disturbances to train new PQ instrument users and engineers.
• An automatic sequence steps through a series of PQ disturbances including phase to neutral of voltages sags, swells, and transients, and neutral to ground disturbance of voltage swells and transients. In addition, generating odd harmonics as well.
• A dedicated AC function generator that produces voltage and current waveforms of the most common types of power quality disturbances.
• A voltage waveform of 1.5Vrms representing current on BNC connector.
• Cables adapters to fit meter input connectors available.

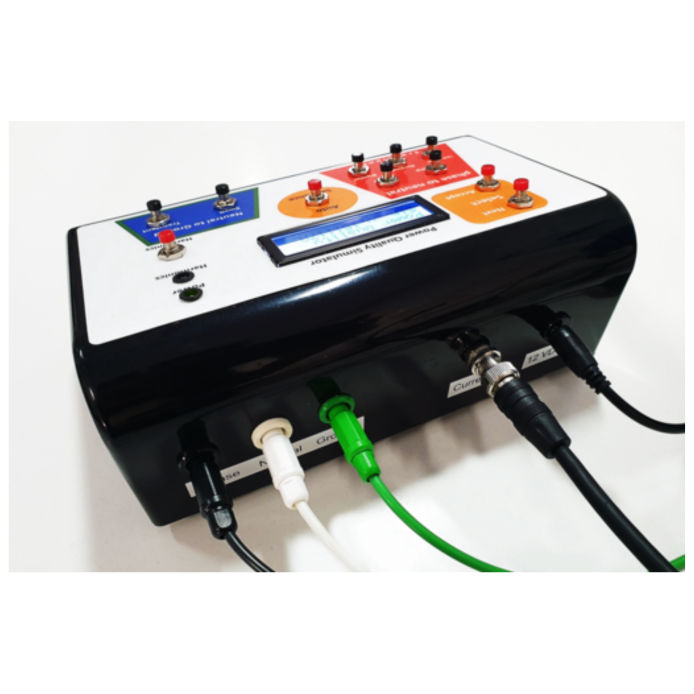

PQSim 100™
Power Input 12VDC Voltage
0 to 1.5 VAC (Current signal to PQ Meter)
*Output Phase Voltage 100~120 VAC, 60Hz​
*AC voltage can be configured within range.

PQSim 200™
Power Input 12VDC Voltage
0 to 1.5 VAC (Current signal to PQ Meter)
*Output Phase Voltage 200~240, 50Hz
*AC voltage can be configured within range.

Phase to Neutral​

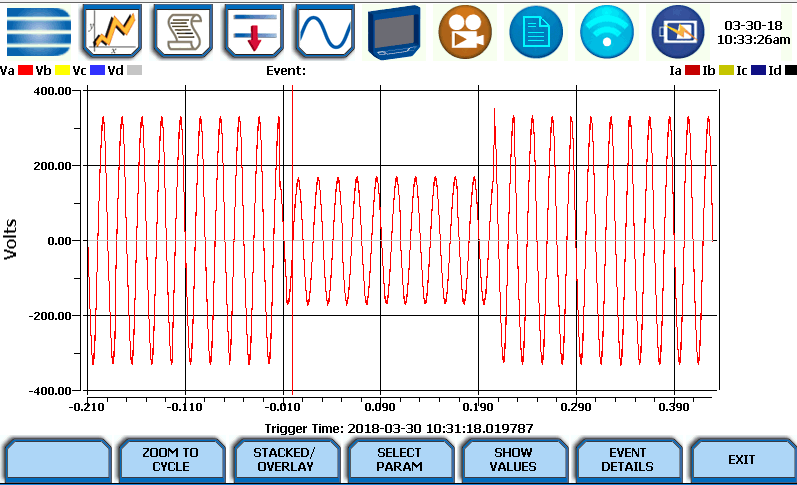

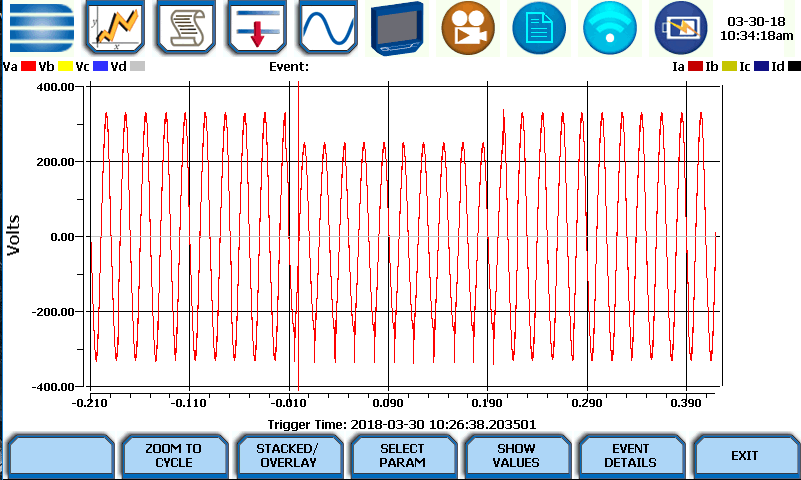

Sag/Dip
• Magnitude (10, 25, 50)%
• Duration (0.05, 0.5, 1, 5, 11) cycles

Voltage Swell
• Magnitude (Fixed +10%)
• Duration (0.05, 0.5, 1, 5, 11) cycles

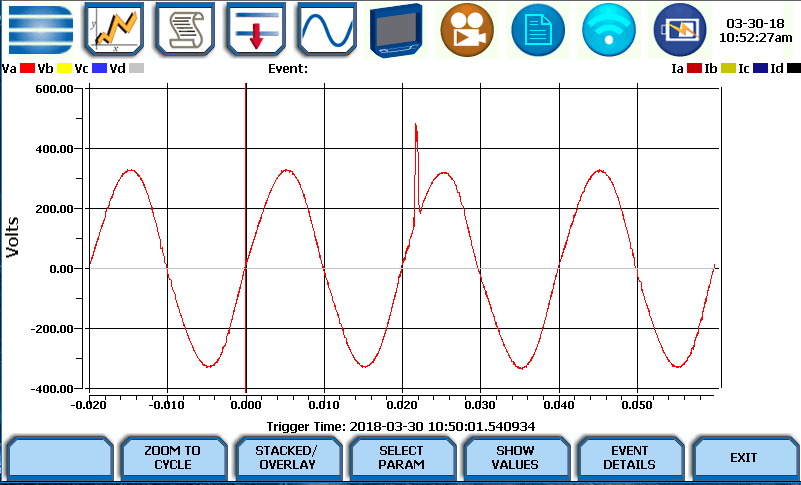

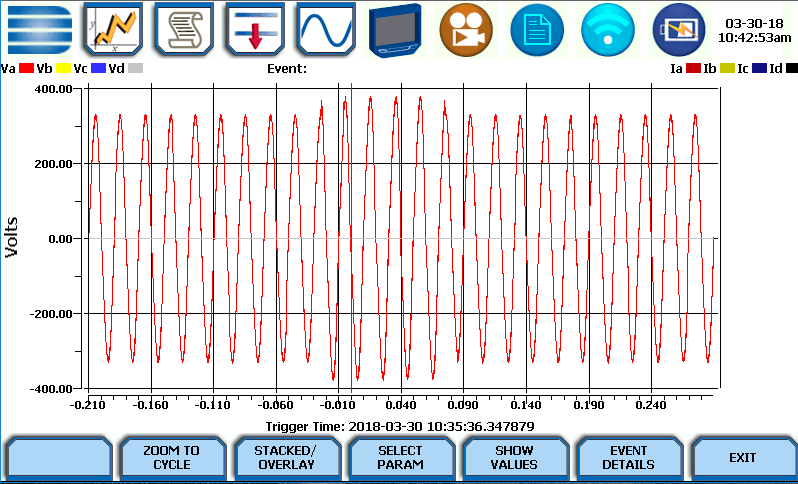

Unipolar & Bipolar Transients

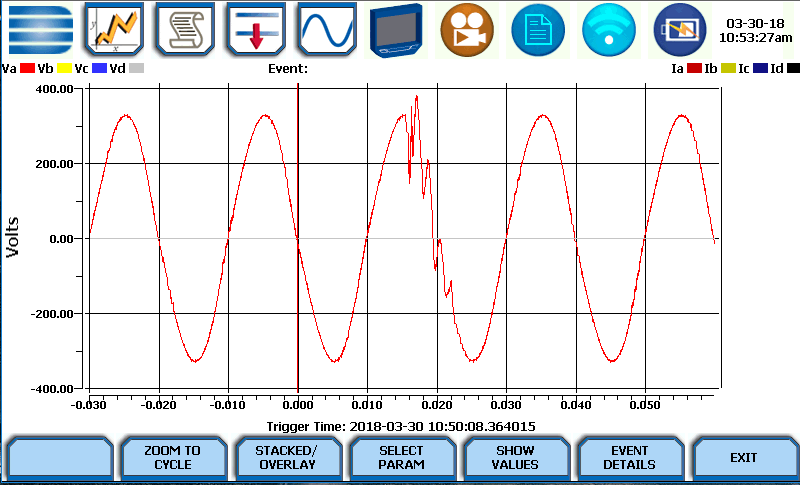

Decaying Ring wave Transients

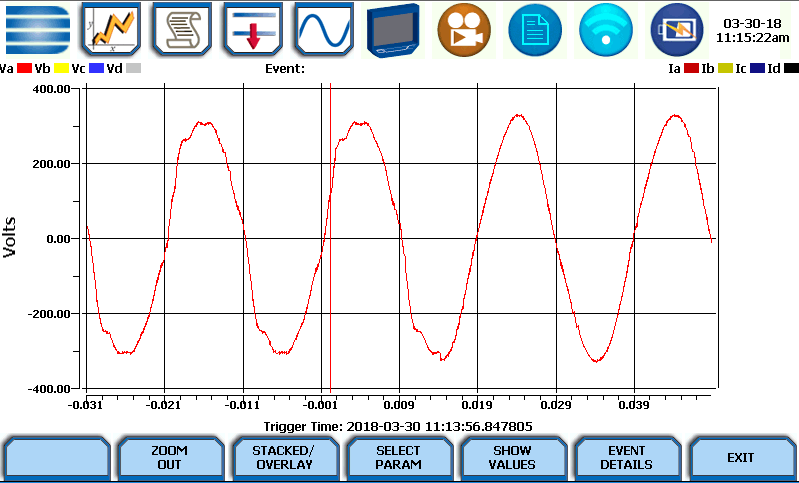

Odd Harmonics

Neutral to Ground

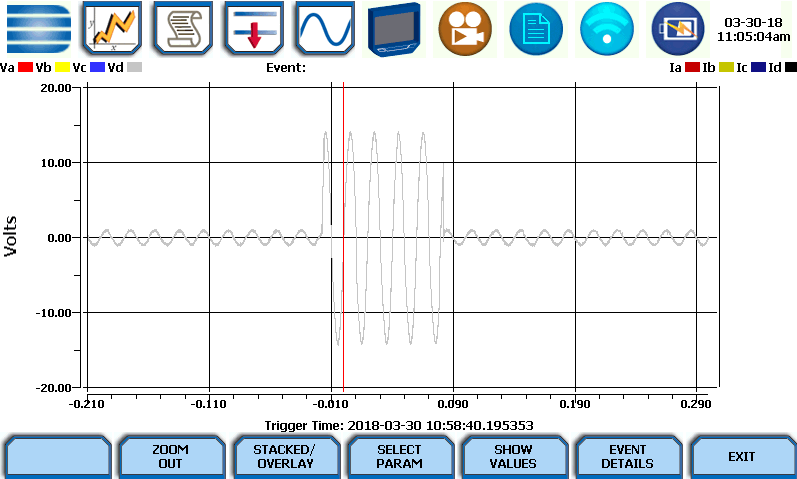

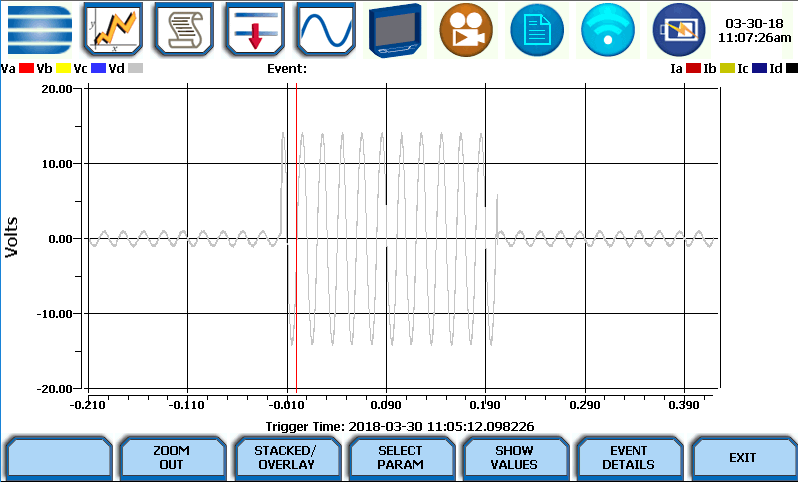

Voltage Swell
• Magnitude (Fixed +10%)
• Duration (0.05, 0.5, 1, 5, 11) cycles

Transients

• BNC to Dranetz TR connector
• BNC to BNC (for PQ meters with BNC input connectors)
• BNC to Pig tails (no connectors) customer supplies the connector to match their meters.​

• 3 Voltage leads (black, white & green)
• Current cable (BNC to TR connector type)
• Jumper cable
• 12VDC splitter cable
• 12VDC extension
• 12VDC power supply

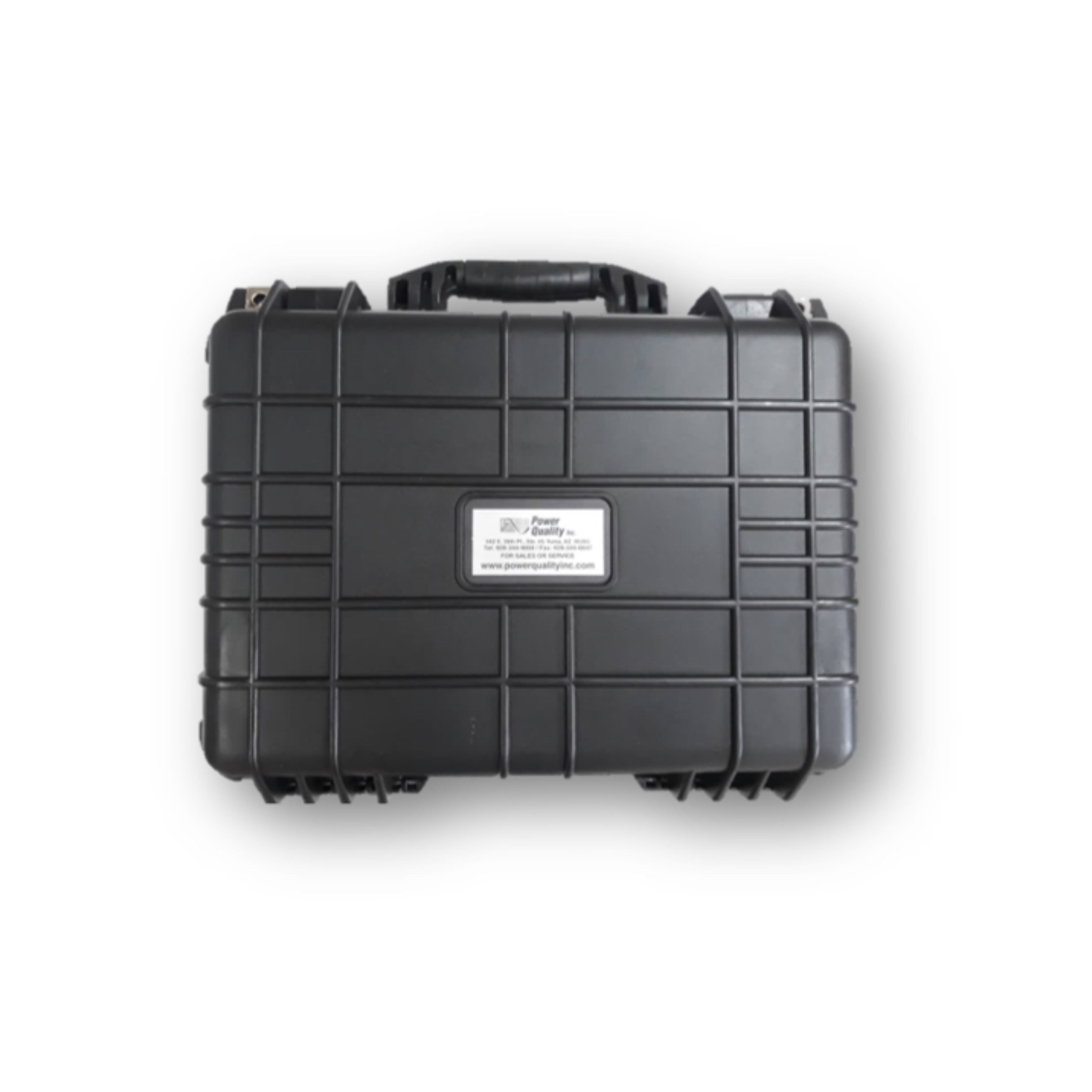

• Large Storage Carry Case
Dimension (L x W x D)
 - External: 16.00" x 13.00" x 6.87" (40.6 x 33 x 17.4 cm)
 - Internal: 14.62" x 10.18" x 6.00" (37.1 x 25.8 x 15.2 cm)

• Octopus cable
• BNC to 4TR type connectors
